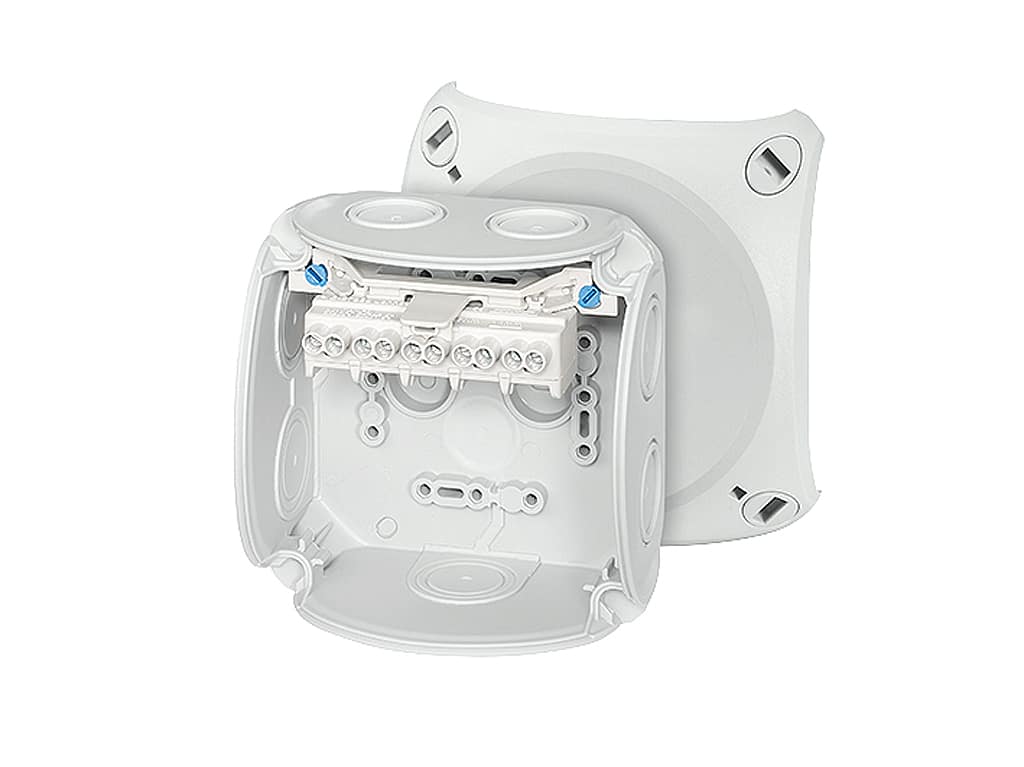

Cable junction box DK 0404 G

DK 0404 G

  • 1.5-4 mm², Cu 3~
  • terminal with 2 clamping units per pole
  • 5-pole per pole 8 x 1,5 mm² r / f, 6 x 2,5 mm² r / f, 4 x 4 mm² r / f, 2 x 6 mm² r / f
  • with elastic membranes, which can be removed for cable entry via cable glands, sealing range 9.0-17.0 mm
  • with one cable entry in the bottom, sealing range Ø 6.0-15.0 mm
  • lid fasteners sealable without accessories
  • retaining strap and external brackets for wall fixing included
  • colour: grey, RAL 7035
  • To close opened membranes use grommets type EDK. Degree of protection = IP 66.

Technic + Documents

rated insulation voltageUi = 690 V a.c./d.c.
rated current:32 A
materialPP (polypropylene)
degree of protectionIP 66
width104 mm
height104 mm
depth70 mm
weight0,158 kg
tightening torque for terminal0.7 Nm
in accordance withIEC 60670-22
