We have had several new sensors from Theben on test around our building for a couple of months.

The new economy sensors come in 3 different variations, a standard surface mounted unit, a standard flush mounted unit and a mini flush mounted unit.

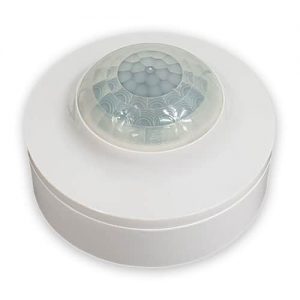

Surface TG103000 Specs

The TG103000 has a diameter of 88mm and a total height of 50mm from lense to base. The terminals are large enough to take 2 X 1.5mm Sq cables, and cable entry can be done through the back or there is a side entry knockout also. Recommended installation height of 2.5-3.5 Meters and up to 6 meter coverage. Power consumption is 1 Watt also. The operating loads are as follows:

1000 Watt          Tungsten, Halogen and Incandescent

400 Watt            Fluorescent (low loss ballast)

200 Watt            Fluorescent (electronic ballast)

200 Watt            Compact Fluorescent

200 Watt            LED with a PF of 0.9

Wiring Diagram

Flush TG103010 Specs

The TG103010 a max diameter of 82mm and a total height of 76.5mm. The terminals are large enough to take 2 X 1.5mm Sq cables. Recommended installation height of 2.5-3.5 Meters and up to 6 meter coverage. Power consumption is 1 Watt also. The operating loads are as follows:

1000 Watt          Tungsten, Halogen and Incandescent

400 Watt            Fluorescent (low loss ballast)

200 Watt            Fluorescent (electronic ballast)

200 Watt            Compact Fluorescent

200 Watt            LED with a PF of 0.9

Wiring Diagram

Flush Mini TG106000 Specs

The TG106000 has max diameter of only 50mm. The terminals are large enough to take 2 X 1.5mm Sq cables. Recommended installation height of 2.5-3.5 Meters and up to 6 meter coverage. Power consumption is 1 Watt also. The operating loads are as follows:

1000 Watt          Tungsten, Halogen and Incandescent

400 Watt            Fluorescent (low loss ballast)

200 Watt            Fluorescent (electronic ballast)

200 Watt            Compact Fluorescent

200 Watt            LED with a PF of 0.9

Wiring Diagram
